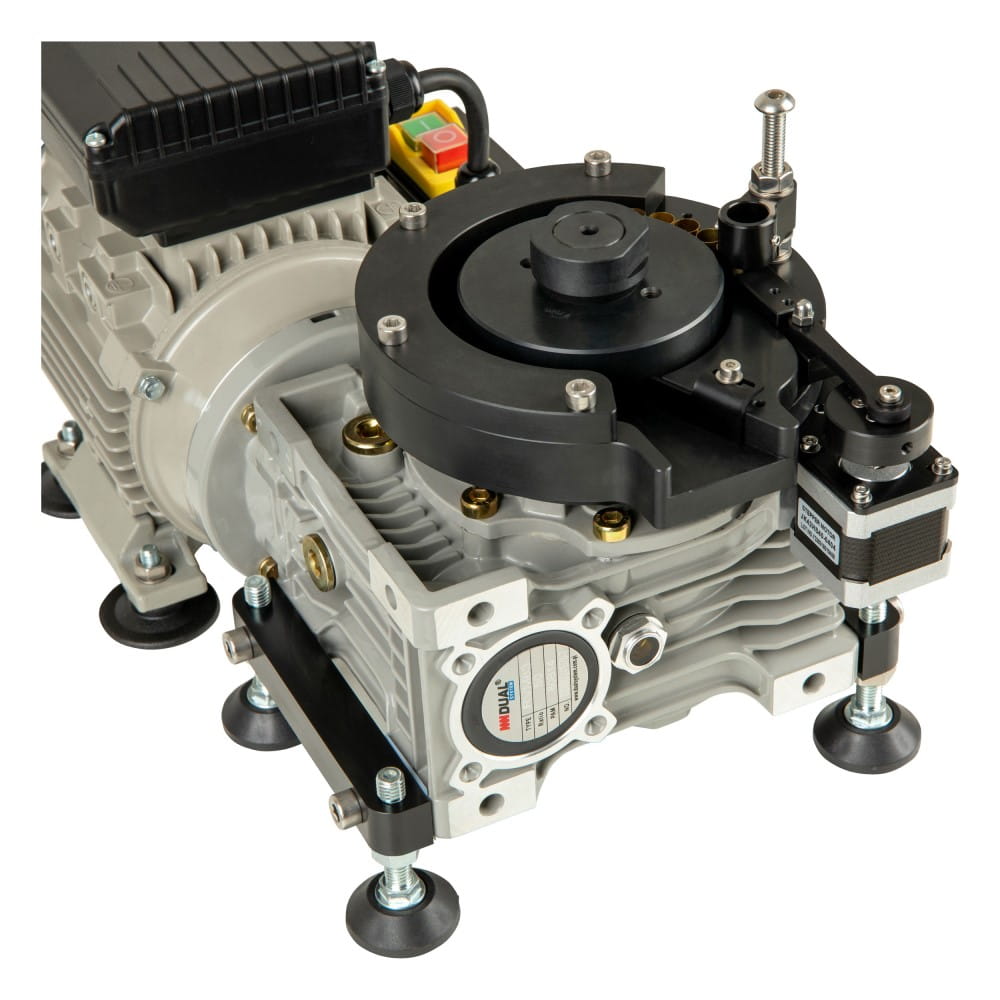

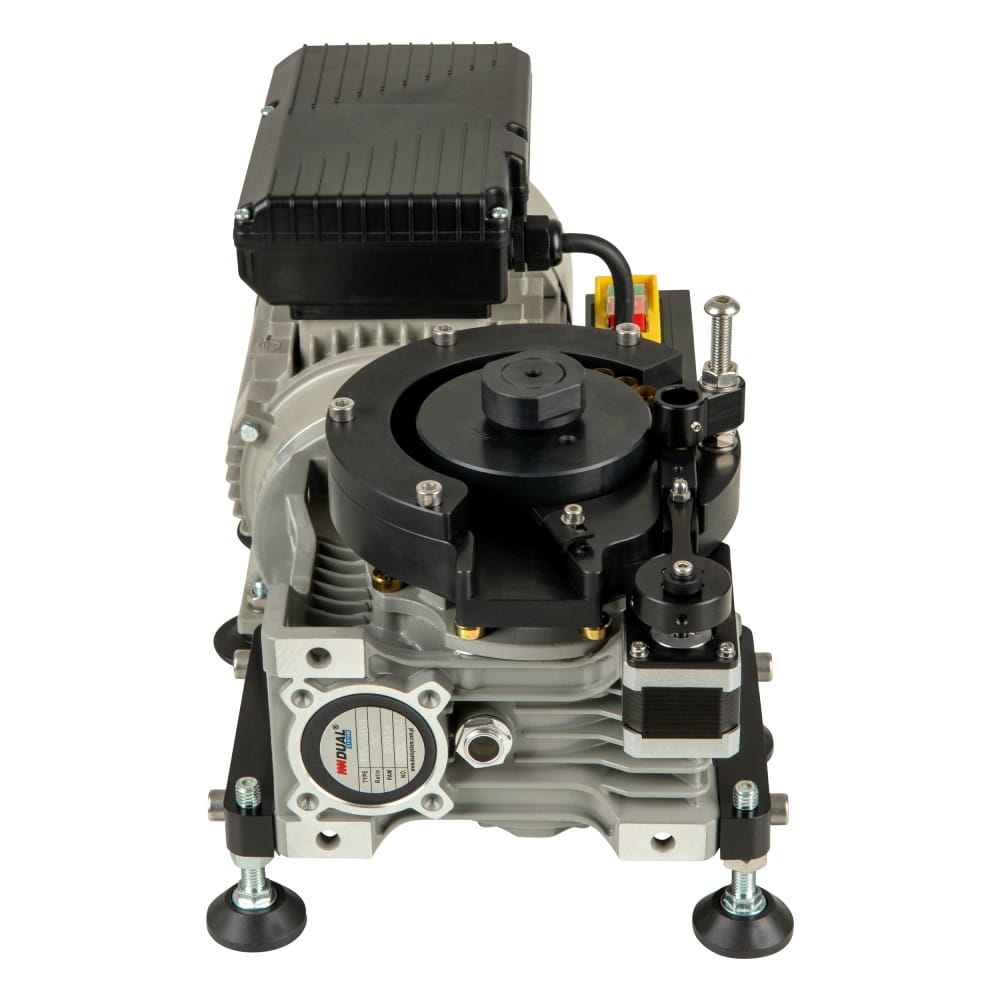

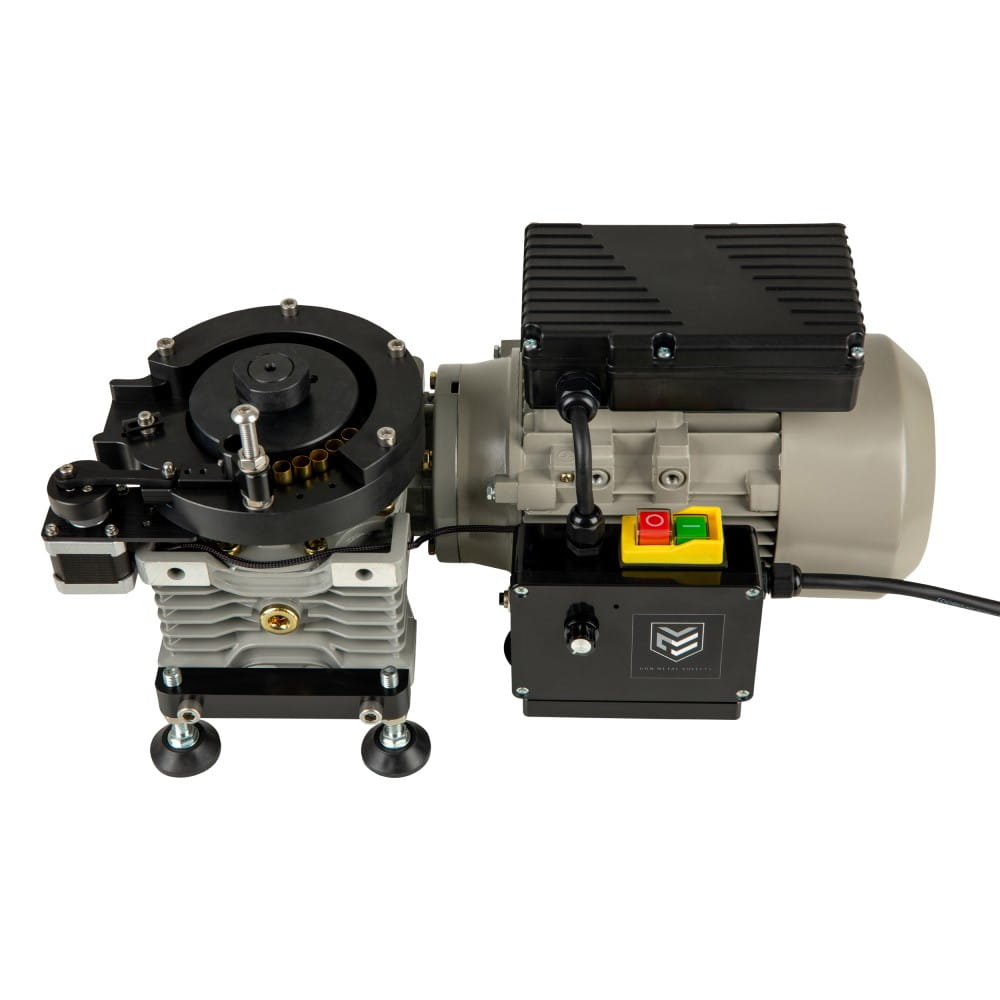

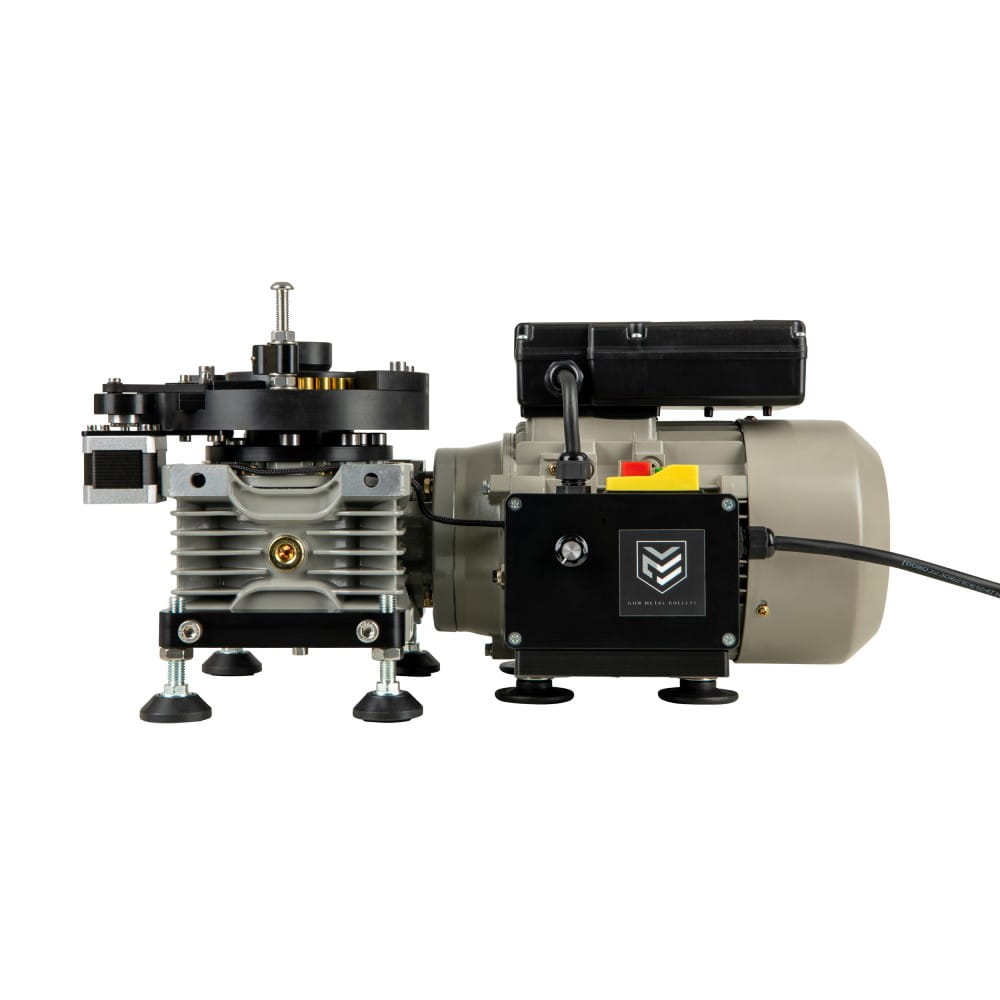

GMB case roller Ultimate

• – rimless (like 9mm) and rimmed (like .38 Special) cases roll sizing capability
• – continuously adjustable rolling speed: up to 7000 cases per hour
• – built-in jam detection feature
• – standard conversion kits: 9mm, .40 S&W, .45 ACP, .38 Special, .357 Magnum, .223 Rem/5,56 NATO, .308 Win
• – custom rimless caliber conversion kits available on request
• – main parts made of hardened steel
• – voltage: 230V 50Hz / 110V 60Hz
• – conversion kit and  C-shaped wall NOT included

Firearms with looser chambers can result in case expansion when a round is fired, leading to bulged cases that may cause jams when firing. For shooters, reliability is key – especially during competition – and unreliable ammunition is a serious issue. The GMB case roller Ultimate is a machine that restores proper case diameter by removing the bulge from cases, while also resizing the rim of the case for optimal performance. The process is called roll sizing or roll-sizing, and shooters and reloaders refer to the machines as a case roller, roll sizer, or rollsizer. Additionally, the machine is designed to consistently resize the cases with less stress on the brass, promoting longer case life and improved accuracy. Designed and built with reliability in mind, the high-grade GMB case roller Ultimate is the perfect solution for shooters who demand optimal performance from their reloaded ammunition.

This high-grade device was designed and built for use in commercial applications or by serious reloaders. In addition to all common features found in every roller version, the machine is capable of resizing both rimless and rimmed cases.

We have also received feedback from shooters and reloaders who have automated reloading presses that, after roll-sizing, their presses run smoother.

1 year limited warranty

Notes :

Remember to order THIS part, as the machine won't work without it.

If, for some reason, you don't want to roll-size the rim of the case, you can disable the funcionality by mounting GMB shims for Ultimate / HD.

The case roller formats only bottom part of the case. So it is still required to use sizing die to format rest of the case during reloading process.

Due to some problems with the availability of components, the case roller you receive may slightly differ from the one shown in the pictures (e.g., different motor and/or gearbox brand/color).

This section view shows how the GMB case roller Ultimate and HD roll-size rimmed cases, including the rim. It also shows why the C-shaped wall is caliber-specific.

Choosing conversion(s)
